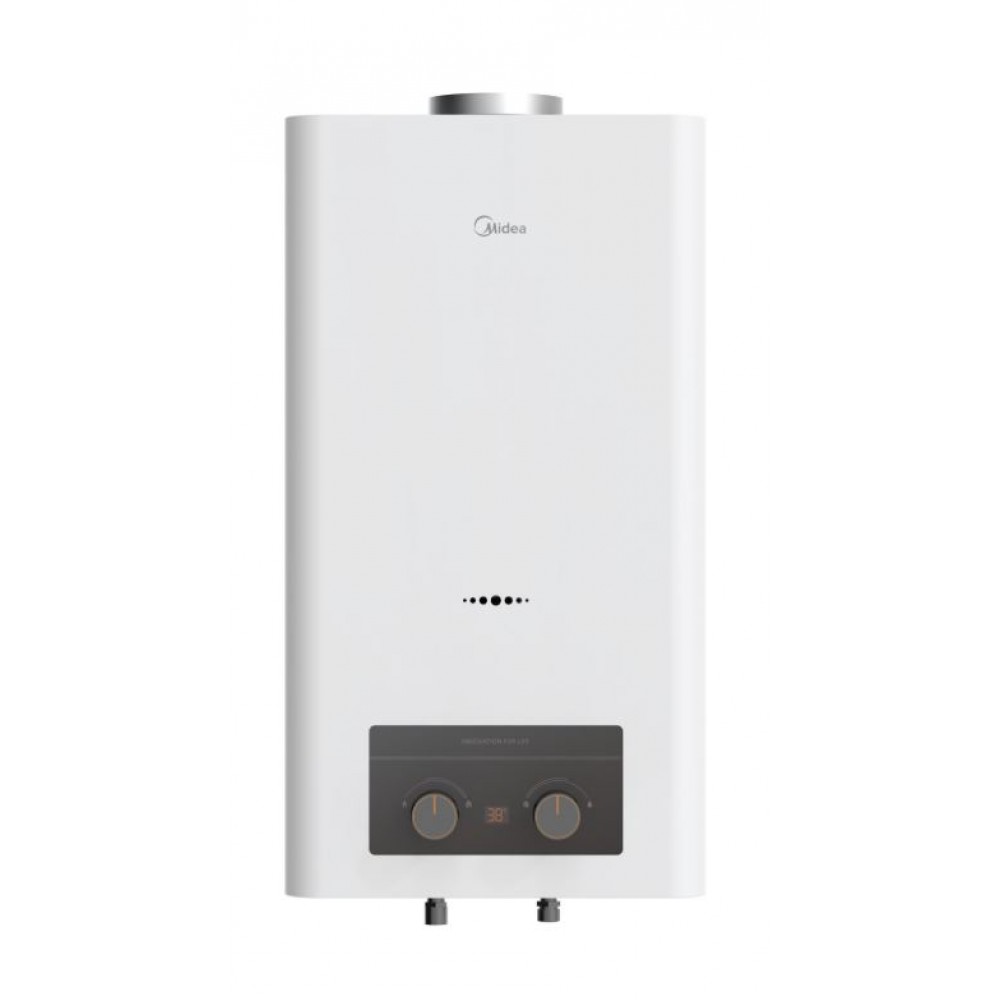

Gas Water Heater

JSD22 11DLS and JSD28 14DLS

ErP Energy Efficiency Class "A" – Energy-Saving, Eco-Friendly, and Cost-Effective

This ErP energy efficiency class "A" gas water heater delivers more efficient water heating, reducing energy bills and environmental impact. Enjoy a green lifestyle with low NOx emissions without sacrificing comfort.

Key Features:

•ErP Energy Efficiency Class "A"

•Energy-Saving and Cost-Effective

•Eco-Friendly

Patented Combustion Technology – Highest Level of Reliability

Patented water-cooled combustion technology significantly reduces NOx emissions and meets the highest CE rating (Class 6). Based on a reduction in burner temperature using water-cooled tubes, this technology makes this water heater an environmentally friendly and reliable choice.

European Patent No. 3584499B

Gas water heater features:

•Open combustion chamber

•Low battery alert

Copper water system with antibacterial protection

The copper system prevents 99.99% of bacteria growth, ensuring clean and safe water. An oxygen-free copper heat exchanger increases efficiency and reduces gas consumption. Protection and Durability:

•Freeze, overpressure, and dry-run protection

•Chimney clogging protection and automatic flame shut-off

Technical Specifications:

JSD22-11DLS:

•Nominal water flow: 11 l/min

•Nominal power: 22 kW

•Load profile: M

•Dimensions: 679x330x213 mm

•Package dimensions: 740x400x300 mm

JSD28-14DLS:

•Nominal water flow: 14 l/min

•Nominal power: 28 kW

•Load profile: XL

•Dimensions: 679x370x213 mm

•Package dimensions: 740x440x300 mm

Additional Specifications:

•Suitable water pressure: 0.03–0.8 MPa

•Connections: G1/2 (gas and water inlet)

•Flue diameter: Φ120 mm

•Voltage: DC.3V

•Efficiency: 88%

•ERP: A

Oxygen-free copper heat exchanger – efficient and antibacterial

The SGS-certified copper heat exchanger offers high thermal conductivity, prevents the growth of bacteria, and ensures fast water heating with reduced gas consumption.

This water heater combines eco-friendliness, safety, and high efficiency, offering the perfect solution for your home.
