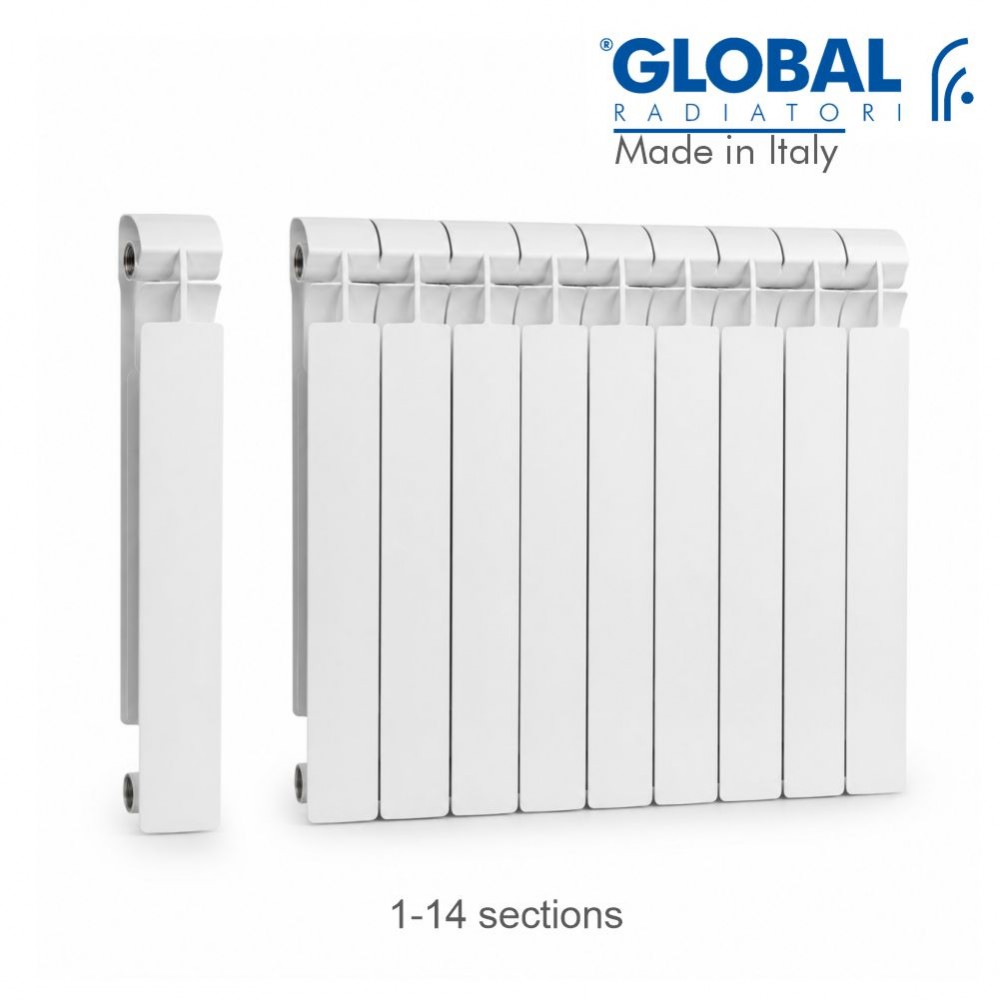

The Global Style Plus 500 bimetallic radiator is designed for hot water heating systems with a heat carrier temperature of up to 110°C. The model is designed for operating pressure up to 35bar and can be used in systems with pipes made of iron, copper and thermoplastic materials.

The radiator construction combines a steel internal part and an aluminium external surface. The steel core allows the radiator to be used in systems with high operating pressure, while the aluminium outer part and increased radiating surface provide a heat output of 114W per section at ΔT 50°C according to EN 442 and 185W at ΔT 70°C.

Style Plus 500 has a centre distance of 500mm, an overall height of 575mm, a depth of 95mm and a length of 80mm per section. The radiator is assembled from separate sections, allowing the total length to be selected according to the required heat output of the room. Connection — 1”.

The radiator surface undergoes double coating: first by anaphoresis in a bath, then with epoxy-polyester powders. Standard colour — white RAL 9010;

Style Plus radiators can be installed with conventional and condensing boilers operating on methane, fuel oil, wood or pellets, as well as with heat pumps. Operation is possible in both conventional and low-temperature heating systems.

Technical specifications

Type: bimetallic sectional radiator

Brand: Global

Model: Style Plus 500

Materials: steel, aluminium

Overall height: 575mm

Length of one section: 80mm

Depth: 95mm

Centre distance: 500mm

Connection: 1”

Weight of empty section: approx. 1.94kg

Water content per section: 0.19l

Heat output ΔT 50°C EN 442: 114W / 98kcal/h

Heat output ΔT 70°C: 185W / 160kcal/h

Heat output ΔT 20°C: 34W

Heat output ΔT 25°C: 45W

Heat output ΔT 30°C: 58W

Heat output ΔT 35°C: 71W

Heat output ΔT 40°C: 85W

Heat output ΔT 45°C: 99W

Heat output ΔT 55°C: 129W

Heat output ΔT 60°C: 145W

Coefficient Km: 0.62795

Exponent n: 1.32920

Formula for calculating output at another ΔT: P = Km × ΔTⁿ

Working medium: hot water and steam

Maximum heat carrier temperature: 110°C

Operating pressure: up to 35bar

Test pressure: 52.5bar

Burst pressure: over 100bar

Pressure control: 100% of radiators are tested

Compatible pipes: iron, copper, thermoplastic materials

Standard colour: white RAL 9010

Certification of heat output ΔT 50°C: tests according to UNI EN 442, Polytechnic University of Milan

Company certification: ISO 9001; ISO 14001

Installation: by qualified personnel, in accordance with applicable standards and technical documentation

Minimum distance from wall: 3cm

Minimum distance from floor: 10cm

Minimum distance from shelf or windowsill: 10cm

Section assembly: use original nipples and gaskets

Recommended tightening torque when connecting radiators: 170/180 N/m

Recommended tightening torque for plugs and reducers: 60/70 N/m

Air vent: an automatic or manual air vent must be installed on each radiator

Excluding a radiator from the circuit: each radiator requires an automatic air vent

Water quality: pH preferably 7-9.5

Inhibitor: passivating inhibitor of the Cillit-HS 23 Al type or equivalent, 1l per 200l of water in the system

Water speed in the system: not more than 2m/s

Operating conditions: after installation and system start-up, the room temperature must not fall below 0°C

Operating restrictions: do not use water with corrosive characteristics towards the metals of the heating system

Humidity restrictions: do not store or install radiators in very humid rooms, showers, saunas, Turkish baths or near swimming pools

Use restrictions: do not place heavy objects on the radiator; do not use it as a bench, support, ladder or furniture support

Surface care: clean with water and neutral detergents on a cold radiator

Prohibited cleaning: abrasive, chemically corrosive and aggressive agents

Warranty: 10 years from the production date indicated on the side of each section

Warranty conditions: valid with professional installation, correct connection and compliance with the installation, operation and maintenance instructions

Grounds for loss of warranty: corrosive water; freezing of water inside the radiator; violation of installation, operation or maintenance conditions

NB: Brackets and connection kits are not included and must be purchased separately.
