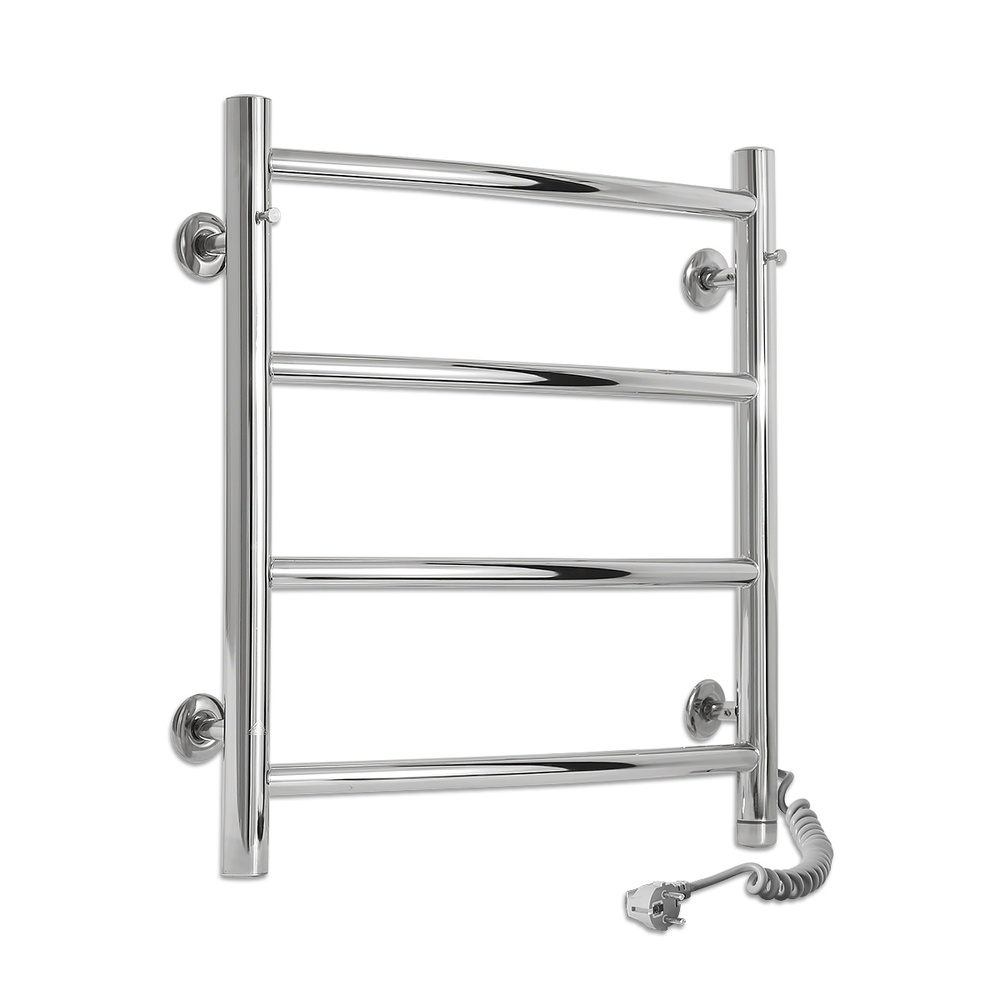

Electric towel warmer Laris Classic C4 450×500 with touch control and timer (connection on the right)

Material: stainless steel AISI304

Input voltage: 220 V

Frequency: 50 Hz

Product surface temperature: 50 ± 5 °C

Diameter: vertical bar Ø30 mm, thickness 1.5 mm; crossbar Ø20 mm, thickness 1 mm

Controller: on the vertical bar (contact, in the lower part)

Wire location: right

The insulation breakdown test is performed at a voltage of 1500 V

Technical data:

- Vertical bar spacing (A): 450 mm

- Height (B): 500 mm

- Width (C): 480 mm

- Number of crossbars: P4

- Power (±5 %): 63 W

- Crossbar arrangement: evenly

Controller operation

When the towel warmer is connected to the mains, the backlight turns on and off (blue color), which indicates the functionality of the controller.

The S3 controller has three operating modes: min, mid and max.

The modes are switched by short touches to the sensor (less than 2 sec.) — one after the other in a circle. The sensor is located at the end of the lower part of the controller.

The controller has a timed heating shutdown function.

The timer mode (3 hours) is activated by a long touch to the sensor (more than 2 sec.). When the timer is on, the blue light flashes.

The operating mode of the towel dryer is saved: after a power outage and recovery, the controller continues in the last set mode.

Delivery contents:

- Towel rail — 1 pc

- Fasteners (galvanized screw and plug, washer, sleeve, pin, vertical bar) — 4 pcs

- Allen key — 1 pc

- Packaging: cardboard box, polyethylene cover, fastener cover, fastener box — 1 pc

- Instruction manual — 1 pc

The CE conformity mark is the manufacturer's declaration that the product meets the requirements of the European Commission directives applicable to it.
