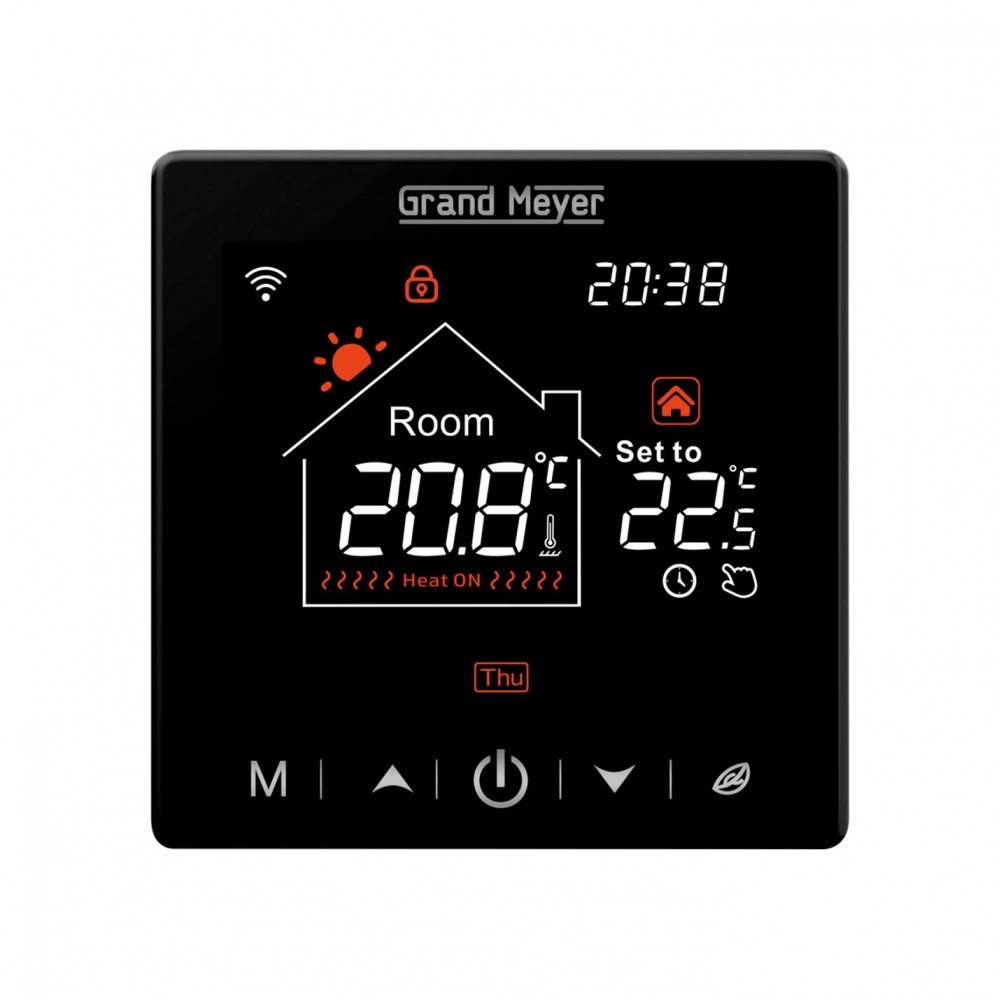

Grand Meyer® SN-10 (White) / SN-15 (Champagne) / SN-20 (Black)

Programmable Wi-Fi Thermostat for Underfloor Heating Control.

The glass design and monochrome display are a perfect fit for modern interiors.

The thermostat automatically maintains the set temperature using the floor sensor (included), the built-in room sensor, or both.

Designed for flush mounting in a standard wall box. Also displays weather forecast (sun/rain/cloudy/snow).

Technical Specifications:

- Power supply: ~230 V (−15%, +10%), 50 Hz

- Switchable load: 16 A / 3.6 kW

- Power consumption (no load): 2 W

- Control method: On/Off

- Output relay: with delay

- Operating temperature: −5 °C to +50 °C

- Sensors: built-in and external

- Temperature range: +5 °C to +95 °C (factory setting: +5 °C to +35 °C)

- Hysteresis (adjustable): 0.5 °C to 10 °C

- External sensor resistance: 10 kΩ at +25 °C

- Cable length: 3 m

- Anti-freeze function: Yes

- Programming: 5+2 / 6+1 / 7 days

- Wi-Fi: 802.11 b/g/n, 2.4 GHz

- App support: Android, iOS

- Housing material: self-extinguishing PVC

- Protection rating: IP20

- Installation dimensions: 86 (H) × 86 (W) × 46 (D) mm

- Housing color: SN-10 (white) / SN-15 (champagne) / SN-20 (black)

- Weight: 255 g

- Certifications: CE, EAC

Modern Design and Features:

Glass panel and monochrome display. Remote access via Wi-Fi and weather forecast (sun/rain/cloudy/snow).

Temperature Sensors:

Operates based on floor, built-in, or both sensors.

Sensor Setup:

For remote access, download the Smart Life app (Android / iOS).
